CageWRX Super Shorty Cage Kit – RZR XP4 1000/Turbo (2014-2018)

Description

CageWRX Super Shorty Cage Kit – RZR XP4 1000/Turbo (2014-2018)

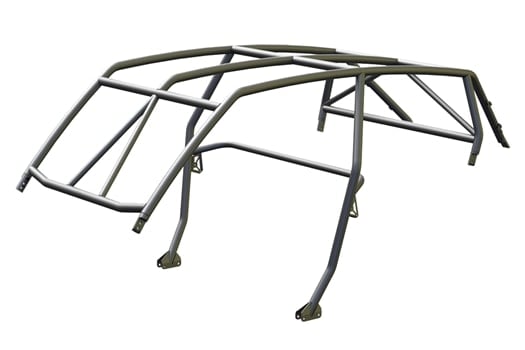

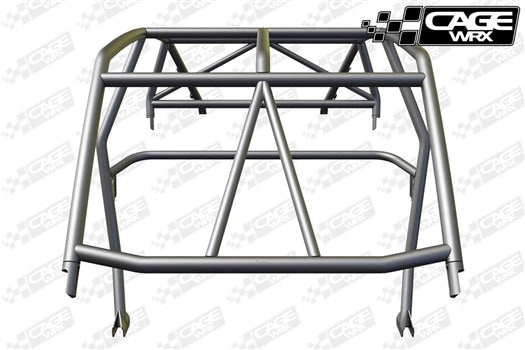

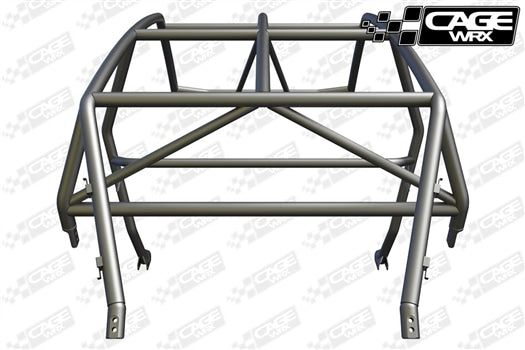

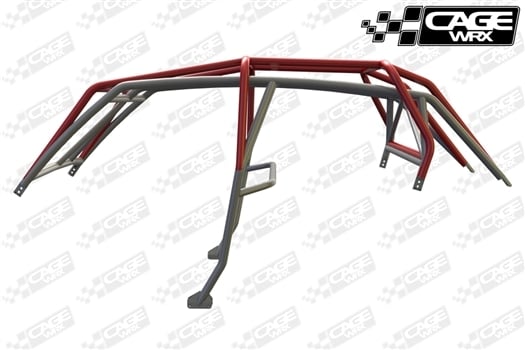

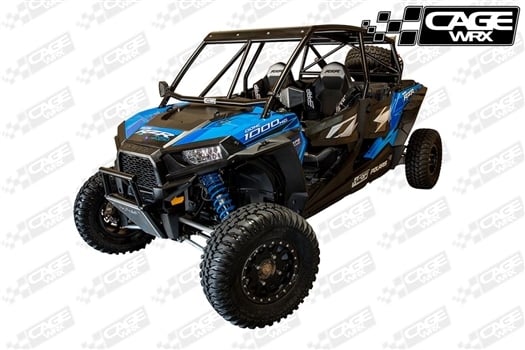

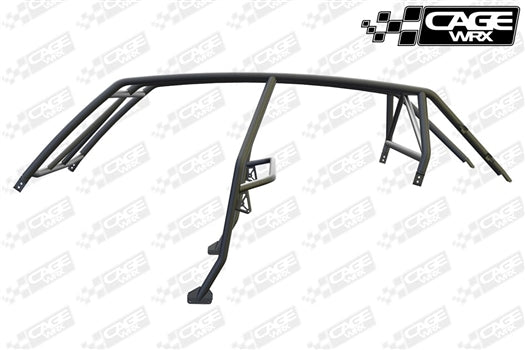

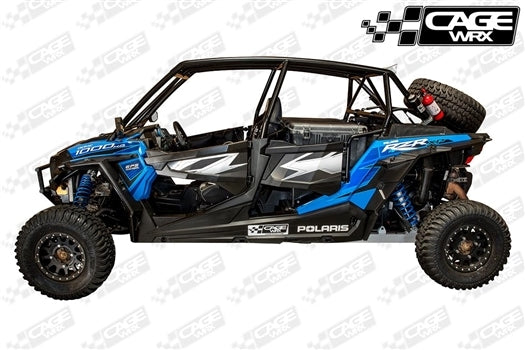

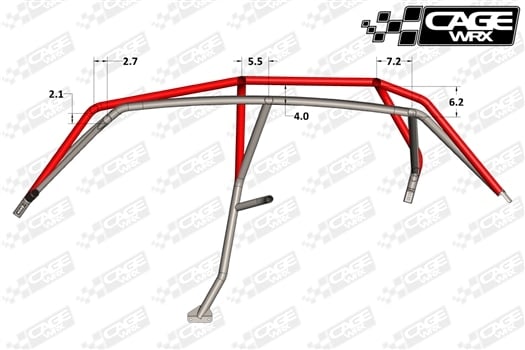

Ready-to-weld Roll Cage Kit for Polaris® RZR XP4 1000 / XP Turbo (2014-2018)

High-quality DOM steel was used throughout. Main tubes are 1.75″ diameter .095″ thick and cross tubes are 1.25″ diameter and .095″ thick. Our Super Shorty roll cages use all stock mounting locations. Trophy Truck-inspired design provides exceptional safety for driver and co-rider. All tubes are mandrel bent and laser cut for exact fit. No grinding or other work required. Kit can be assembled and welded on chassis without the need for a separate fixture.

**In order to retain stock doors, front door hinges must be removed from the stock cage and re-welded to our cage. Doors will retain the exact stock location and fit.**

Features:

• Highest grade DOM steel
• Highly triangulated roll cage for added strength
• Main tubes 1.75″ diameter
• All tubes .095″ wall thickness
• (6) CNC Machined chassis clamps included
• (4) Mounting plates for front row/back row tubes included
• Tubes are laser cut and labeled

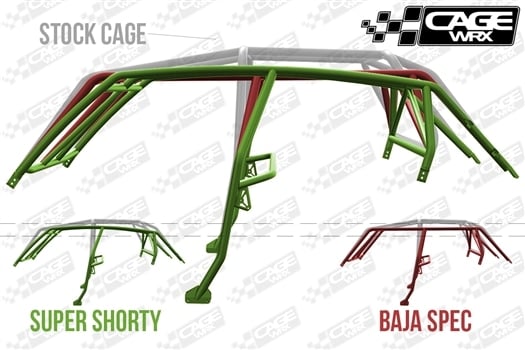

• Slight radius roof design used
• No welding fixture required
• No grinding or other fab work required
• Competent welder and welding machine, tape measure, and 2 ratchet straps are all that is required
• The kit can be TIG or MIG welded
• ROOF NOT INCLUDED IN KIT

What’s In The Box?

• 18 Laser Notched Tubes with tab and slot design for easy positioning of tubes
• 6 Billet Tube Ends (chassis clamps)
• 4 Chassis Mount Plates
• 2 Rear Door Latch Mount Plates
• 2 Whip mounts
