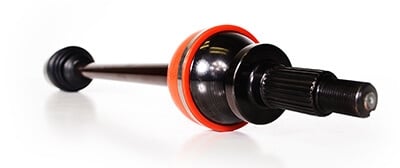

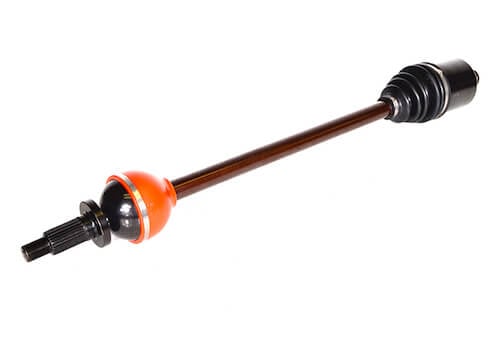

RCV Pro Series I UTV Axle for Polaris RZR XP 1000 (’14-’19) – Front

Description

RCV Pro Series I UTV Axle for Polaris RZR XP 1000 (’14-’19) – Front

Designed as a hybrid between a conventional UTV plunging CV style axle, and our patented bootless technology. Tests prove our Pro Series I XP 1000 front axles to be 2 times stronger than the OEM shafts. Direct OEM fit replacement. 100% manufactured and assembled in the USA.

– 300M axle shaft
– CVs feature 4340 chromoly body & 300M internals – Inner CV plunges 2.25”
– 33 spline 300M center bar with plunging inboard CV eliminates halfshaft pull-out
– 45 degrees of deflection at outboard CV
– Designed for extreme racing conditions
Recommended grease: HT1LF-SPEC

Backed by a 90 day Warranty against breakage to the original purchaser.

Learn more about our affordable Pro Series rebuild program HERE.

*These axles are not intended for heavy mud or water use. Outboard CVs would need to be properly maintained and greased if used in those environments as they are not 100% water tight.

Sold Individually

** ALL UTV’S WHICH HAVE A-ARMS, RADIUS RODS, TRAILING ARMS OR ANGLES ADJUSTED OUTSIDE STOCK SPECS MUST MEASURE BIKE ACCORDINGLY AS AXLE LENGTH WILL BE AFFECTED. PLEASE SEE OUR MEASUREMENT INSTRUCTIONS.
