Impact Implements Pro 6-Piece Kit

Description

Impact Implements Pro 6-Piece Kit

Together to create one amazing system!

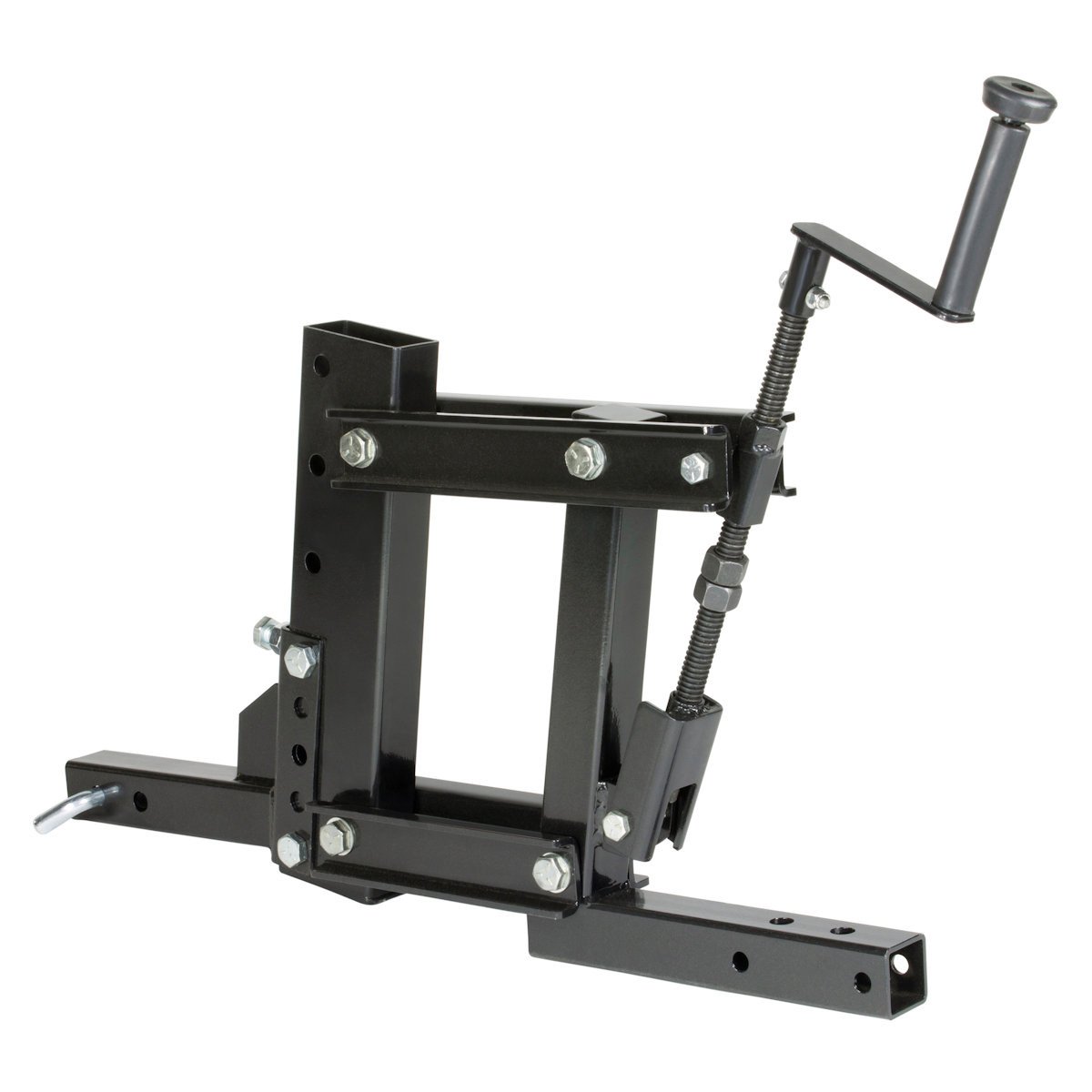

Pro 1-Point Lift System

• Heavy Duty, 14-gauge tube steel construction
• Manual crank / lift for an additional 10″ of fine adjustments
• Fits 2″ hitch receiver (not included)
• Weight: 23 lbs

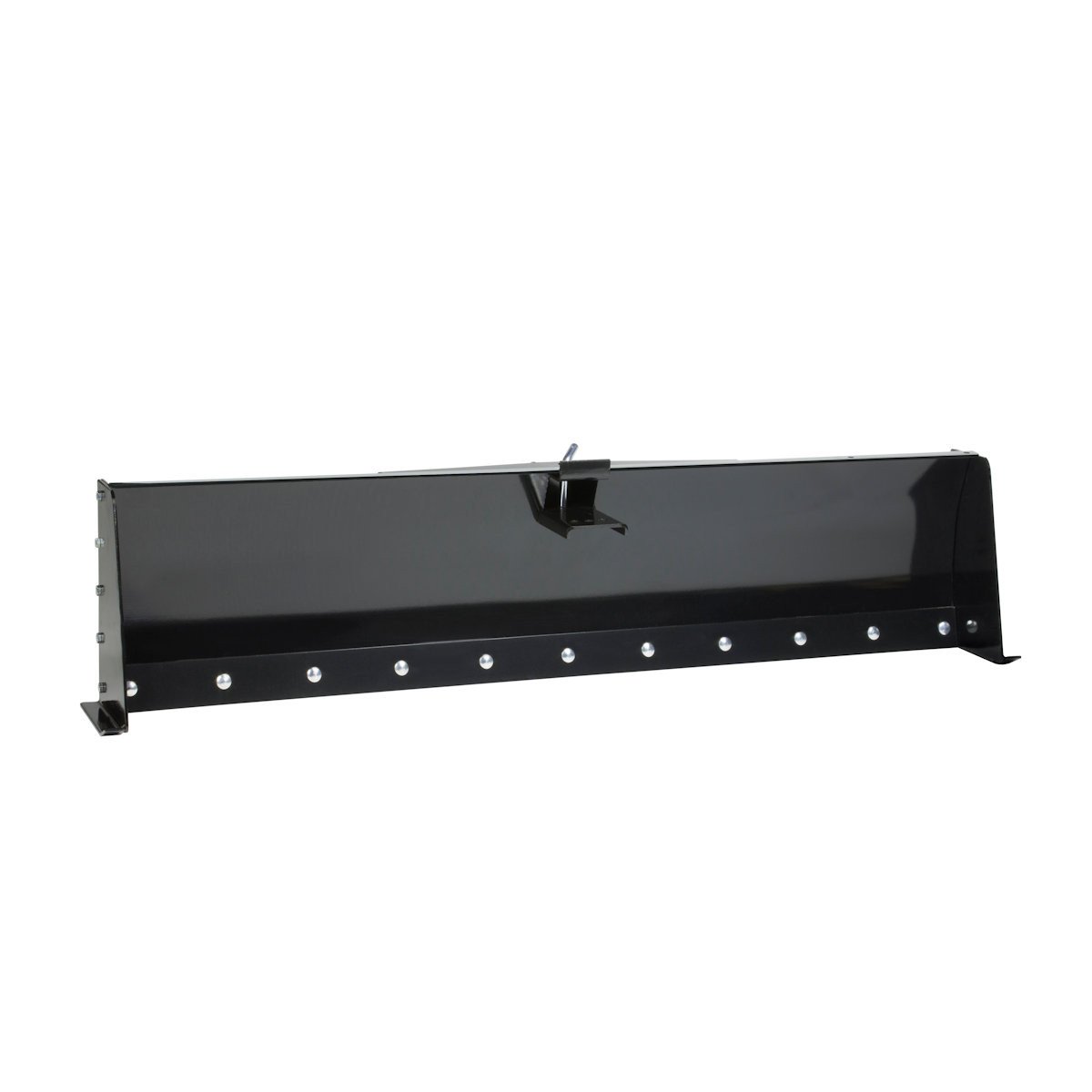

Pro 3-Position Blade with Box Ends

• Three (3) position blade with 12 degree angle adjustment in either direction
• Reversible / Replaceable cutting edge
• Dimensions: 52″ (W) x 12″ (H)
• Weight: 42 lbs

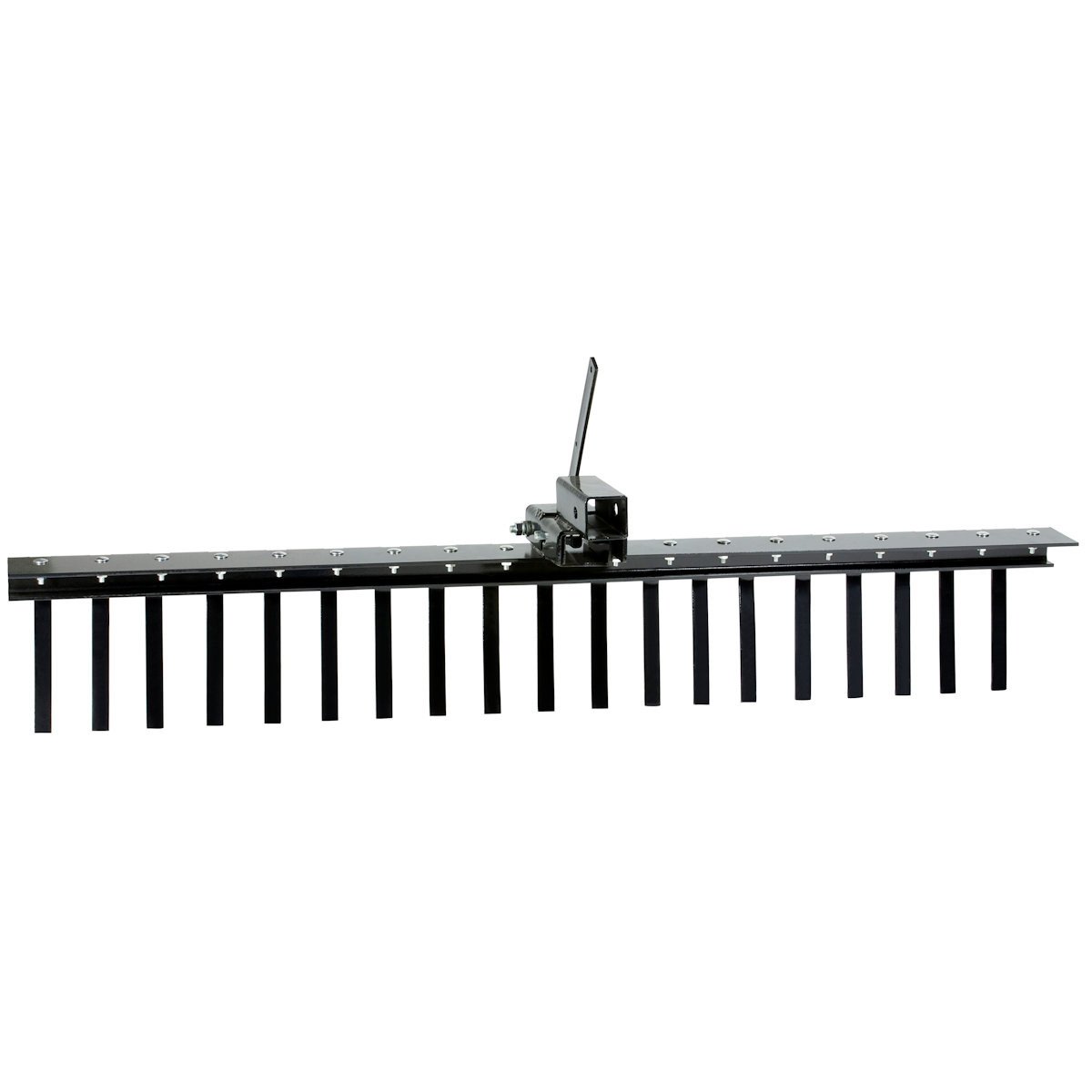

Pro Landscape Rake with Latch

• Nineteen (19), replaceable spring steel rake tines
• Dimensions: 62″ (W) x 10.75″ (H) x 7.75″ (D)
• Tines: 10″(H) x 1″ (W)
• Weight: 32 lbs

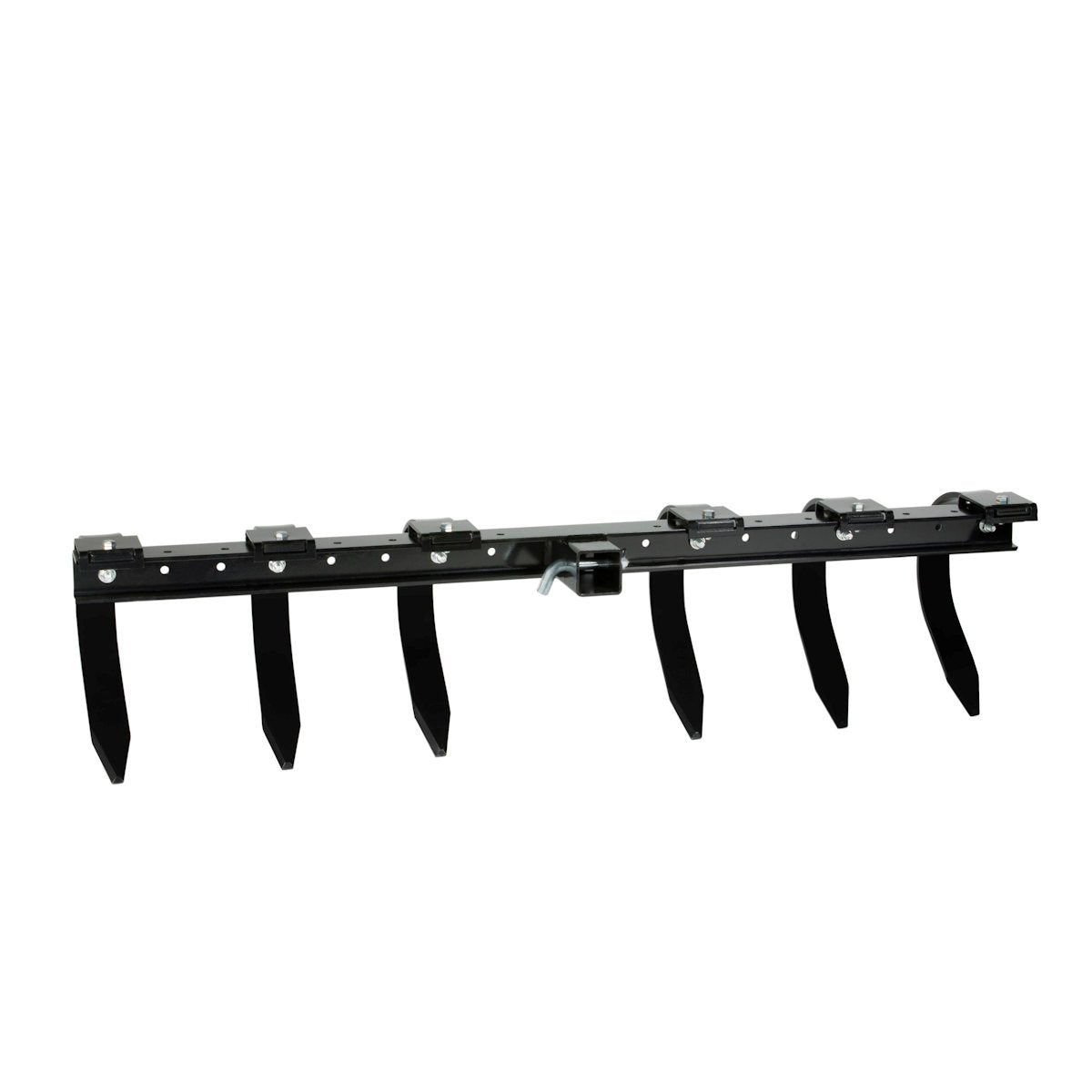

Pro Cultivator

• 49 inch cutting path and six (6), adjustable and replaceable cutting-edge tines
• Dimensions: 50″ (W) x 12.5″ (H)
• Tines: 2″ (W) x 12.5″ (H)
• Weight: 40 lbs

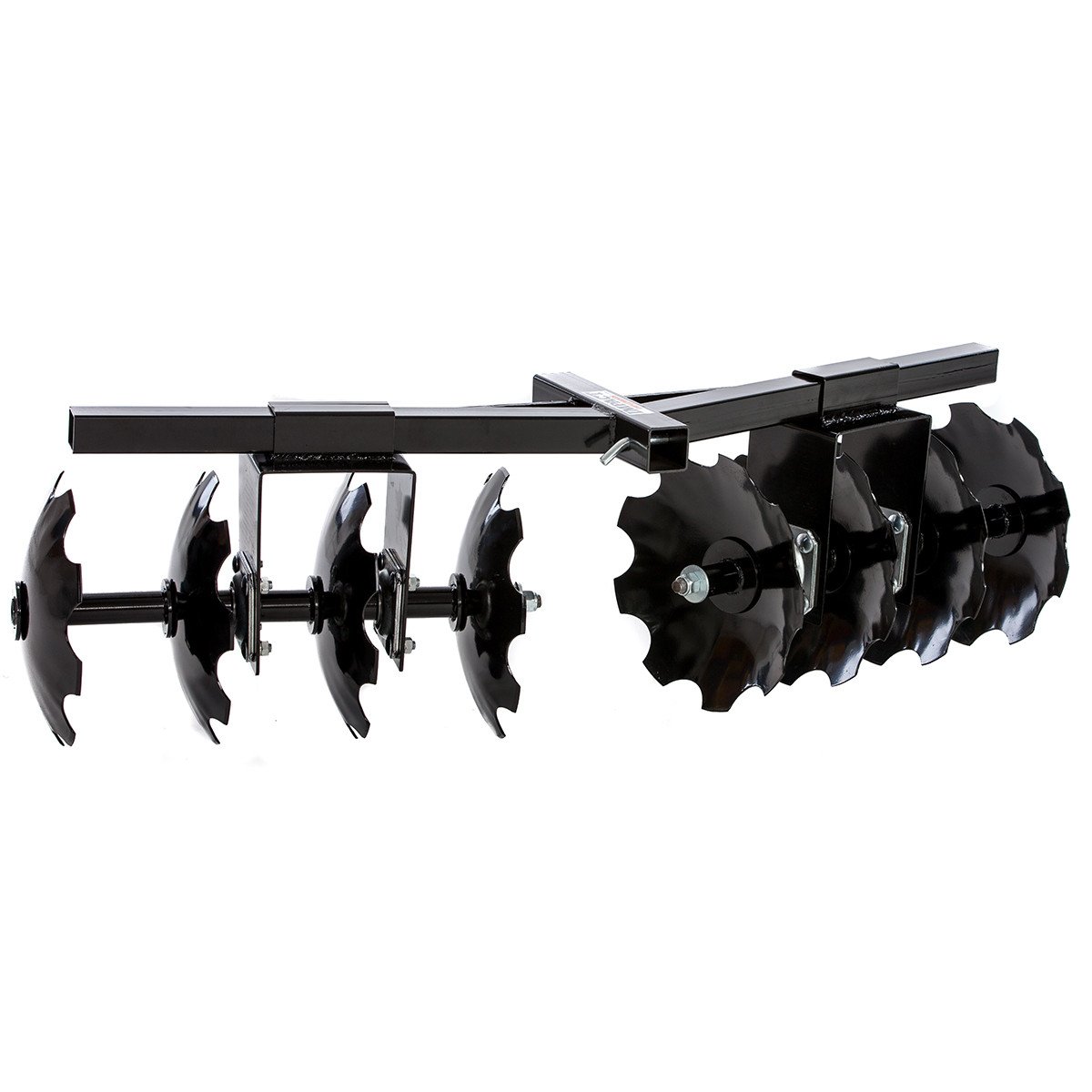

Pro Disc Plow / Harrow

• Features eight (8), 12″ notched, hardened steel, cutter disc blades
• 54 inch of cutting width and two (2) heavy duty roller bearings per axle
• 15 degree blade angle of attack
• Integrated weight tray
• Dimensions: 17″ (L) x 17″ (W) x 1 3/8″ (D)
• Weight: 120 lbs

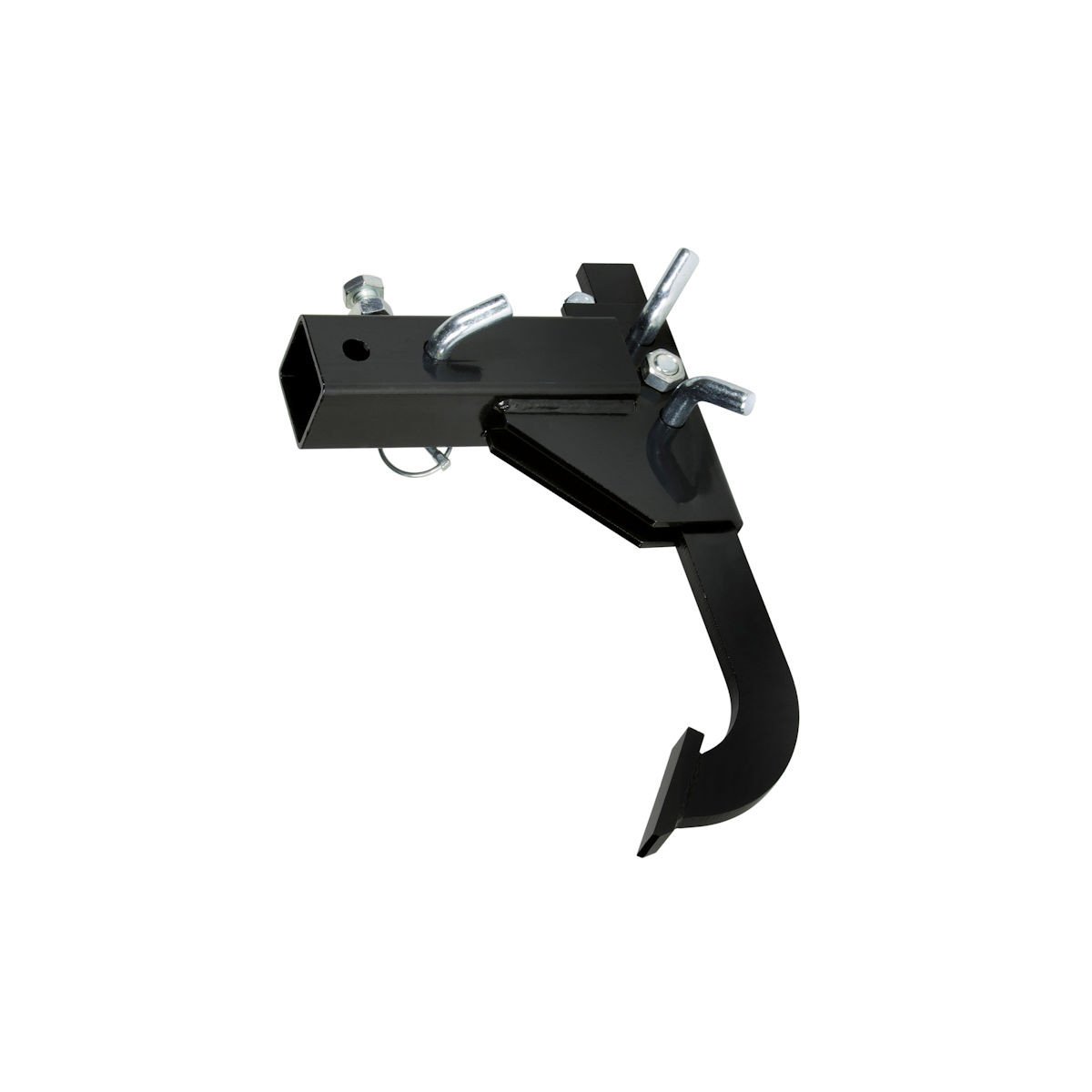

Pro Middle Buster

• Rigid drop shank
• Dimensions: 16″ (W) x 9.75″ (H)
• Tines: 16″ (W) x 5.5″ (H)
• Tine Edges: 3″ (L) x 1″ (W) x 3/8″ (D)
• Weight: 40lbs

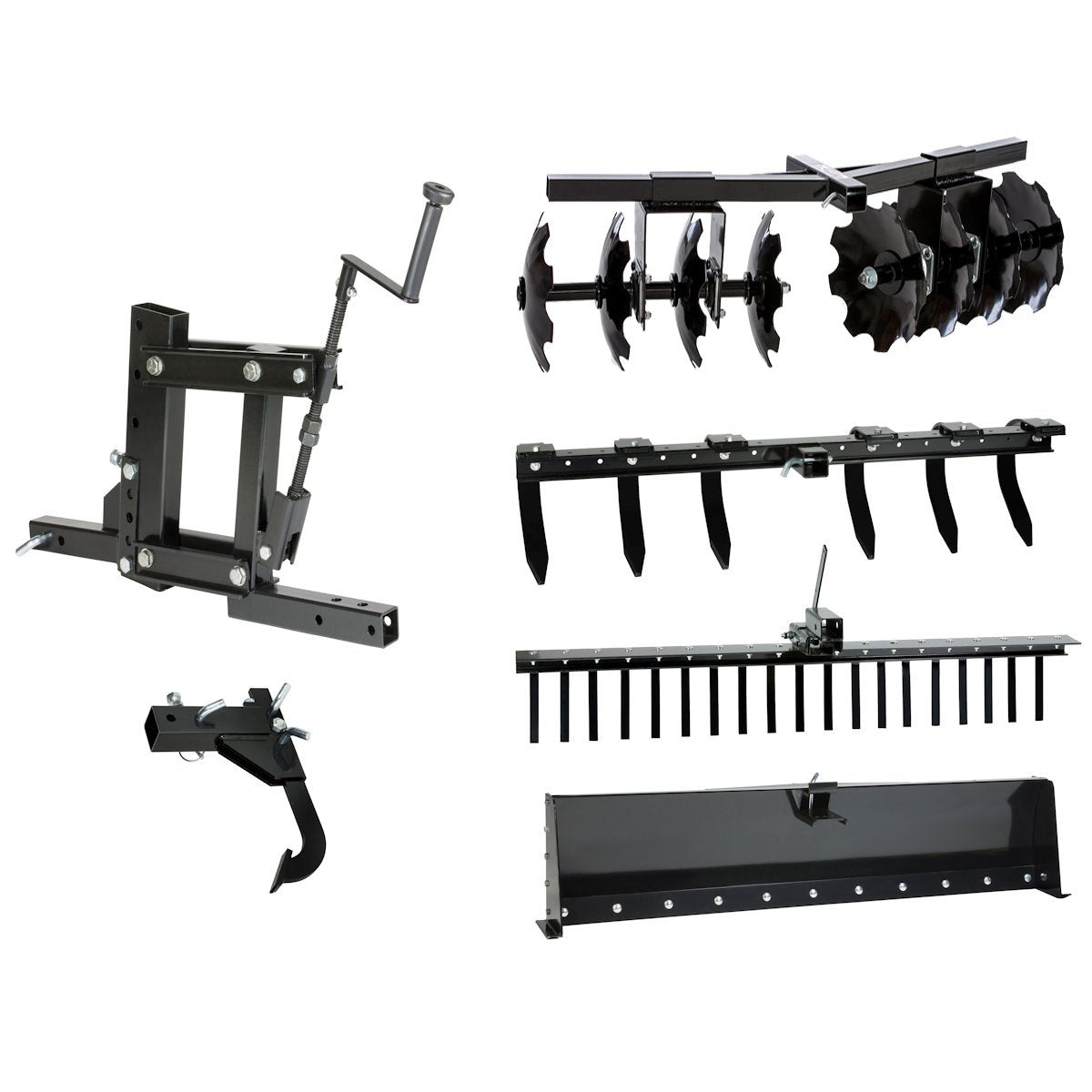

Kit Contents:

• 1-Point Lift System
• Rake with Tipper Latch
• Cultivator
• Blade with Box Ends
• Disc Plow / Harrow
• Middle Buster

Instructions:

• 1 Point Lift Instructions
