Impact Implements New Soil Cultivation Kit

Description

Impact Implements New Soil Cultivation Kit

Includes all the pieces needed to prepare soil, chop dirt clumps, prepare food plots and more. Great tools for use around the farm, in the garden and on the lawn. Quick-attach, durable accessories go on and off easily with a single hitch pin. Manual lift and lower adjustments allow accessories to apply down-force for ground engagement. Easily installs into a 2-inch hitch style receiver already installed on the ATV, UTV or lawn tractor.

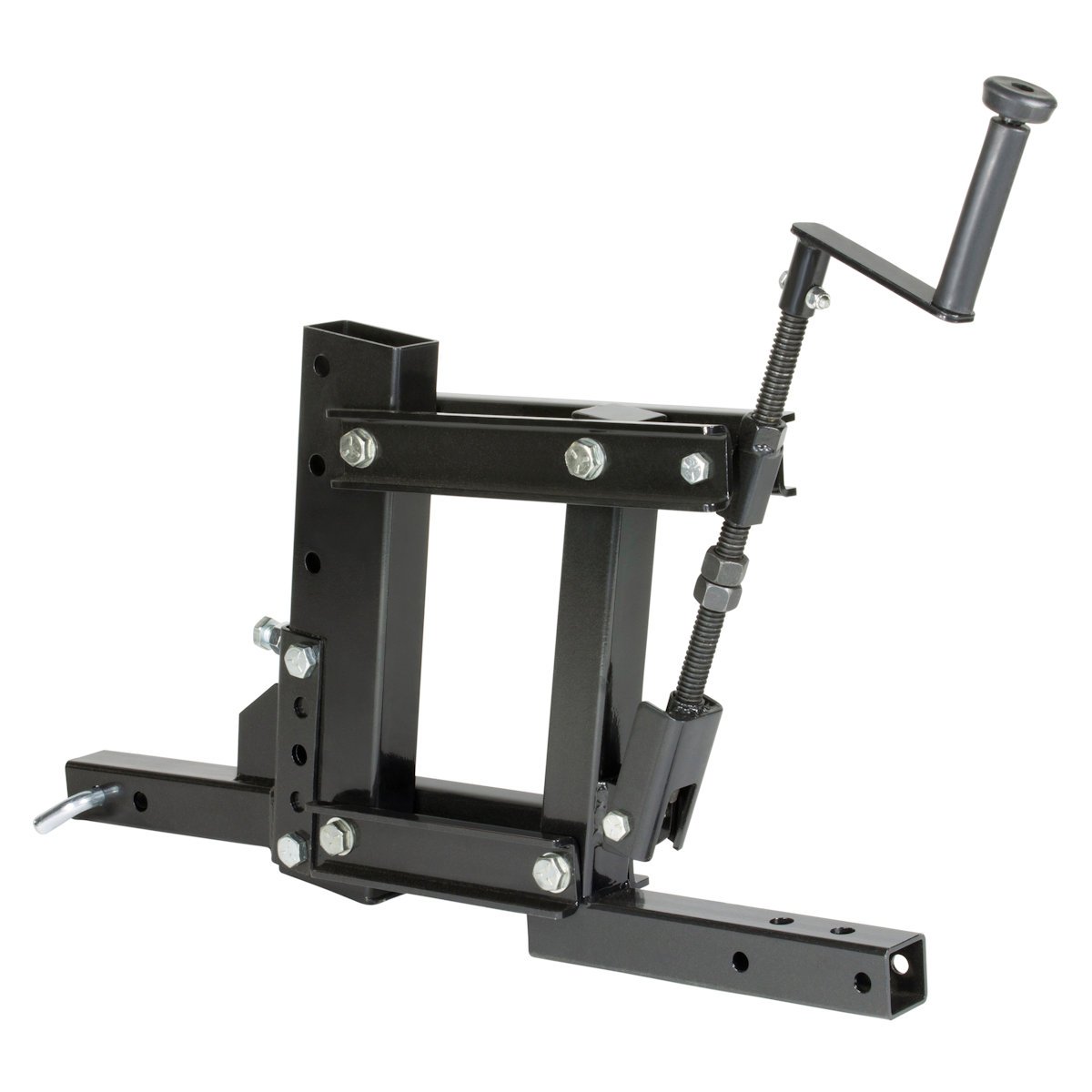

1-Point Lift System

• Heavy Duty, 14-gauge tube steel construction
• Manual crank / lift for an additional 10″ of fine adjustments
• Fits 2″ hitch receiver (not included)
• Weight: 23 lbs

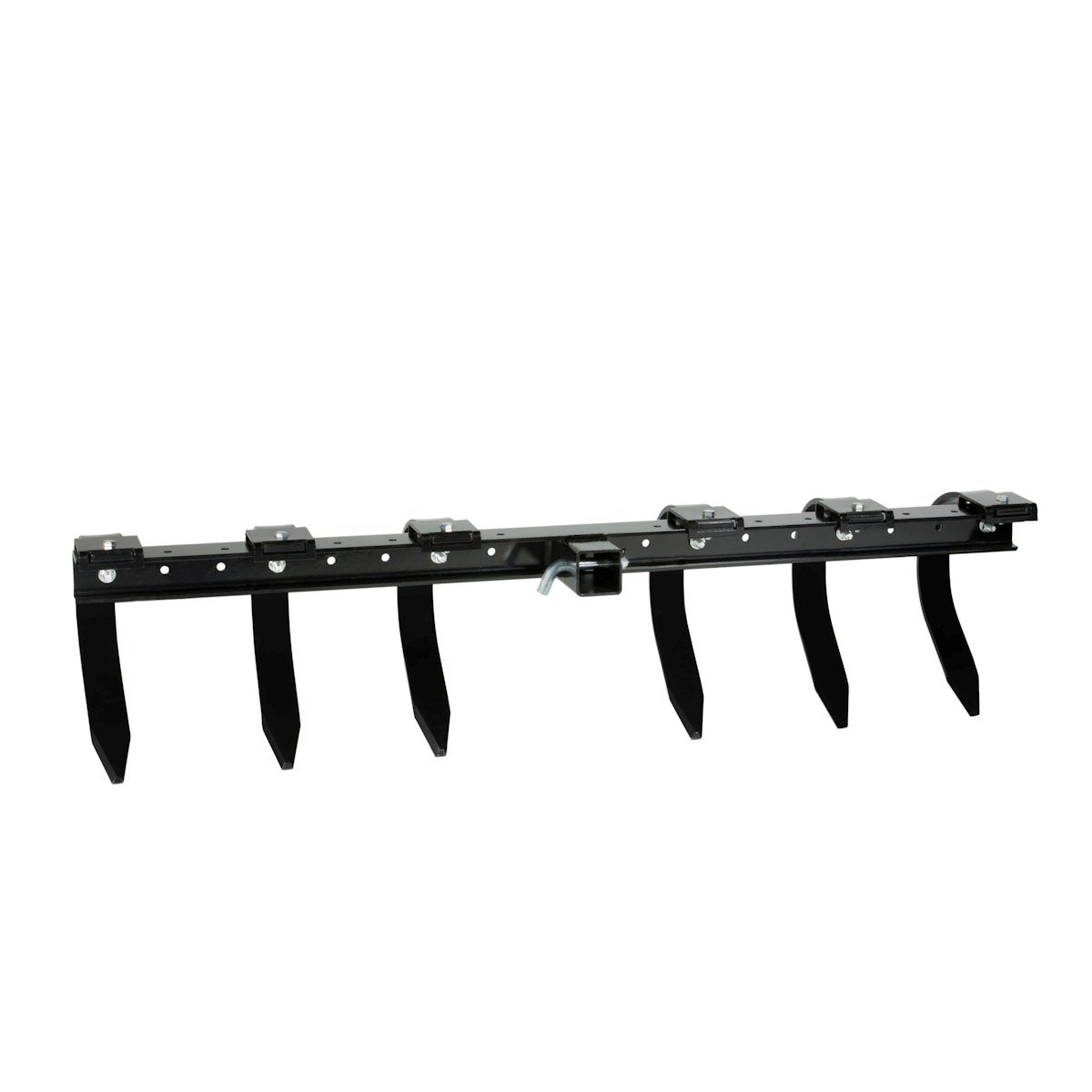

Cultivator

• 49 inch cutting path and six (6), adjustable and replaceable cutting-edge tines
• Dimensions: Unit: 50″ (W) x 12.5″ (H), Tines: 2″ (W) x 12.5″ (H)
• Weight: 40 lbs

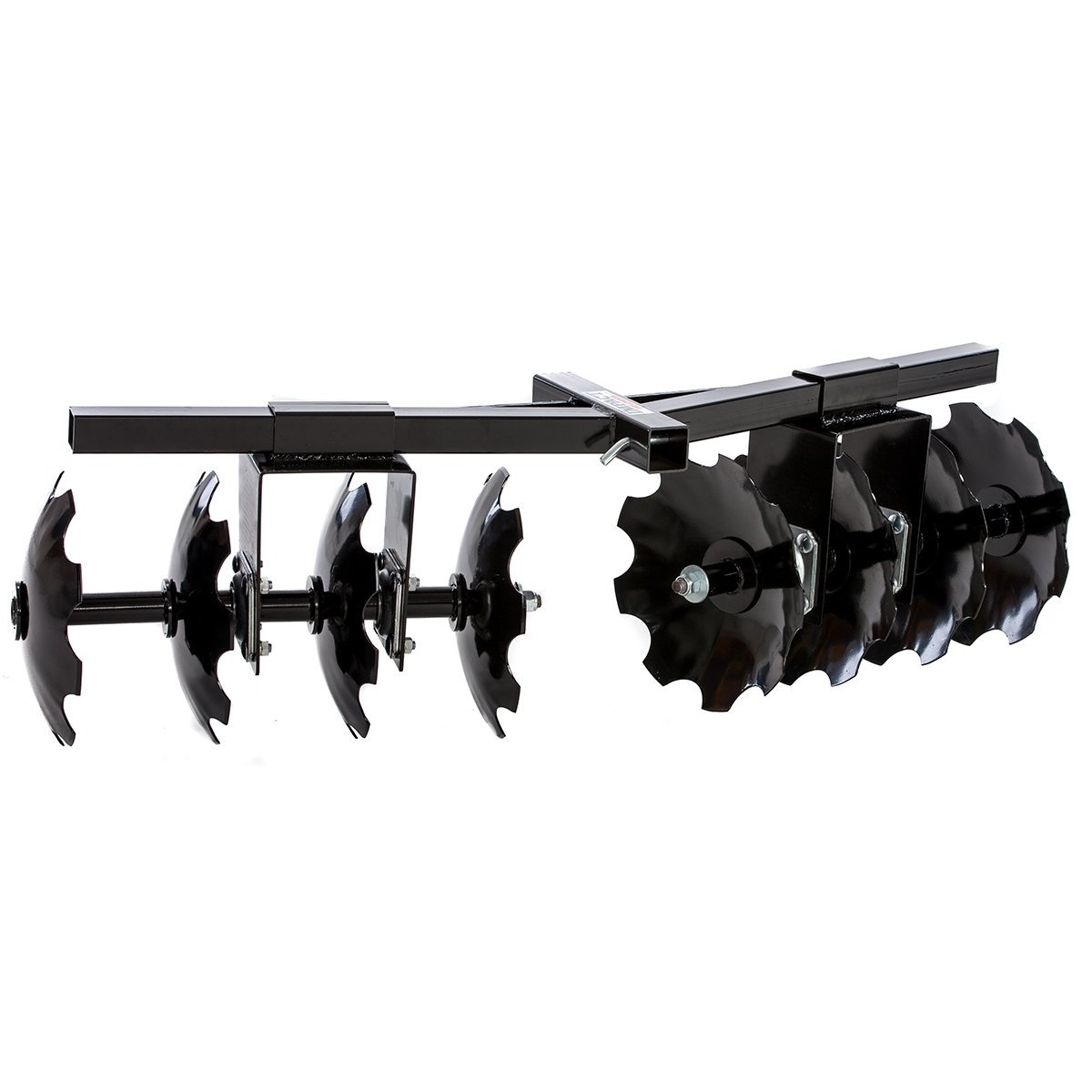

Disc Plow / Harrow

• Features eight (8), 12″ notched, hardened steel, cutter disc blades
• 54 inch of cutting width and two (2) heavy duty roller bearings per axle
• 15° blade angle of attack
• Integrated weight tray
• Dimensions: 17″ (L) x 17″ (W) x 1 3/8″ (D)
• Weight: 120 lbs

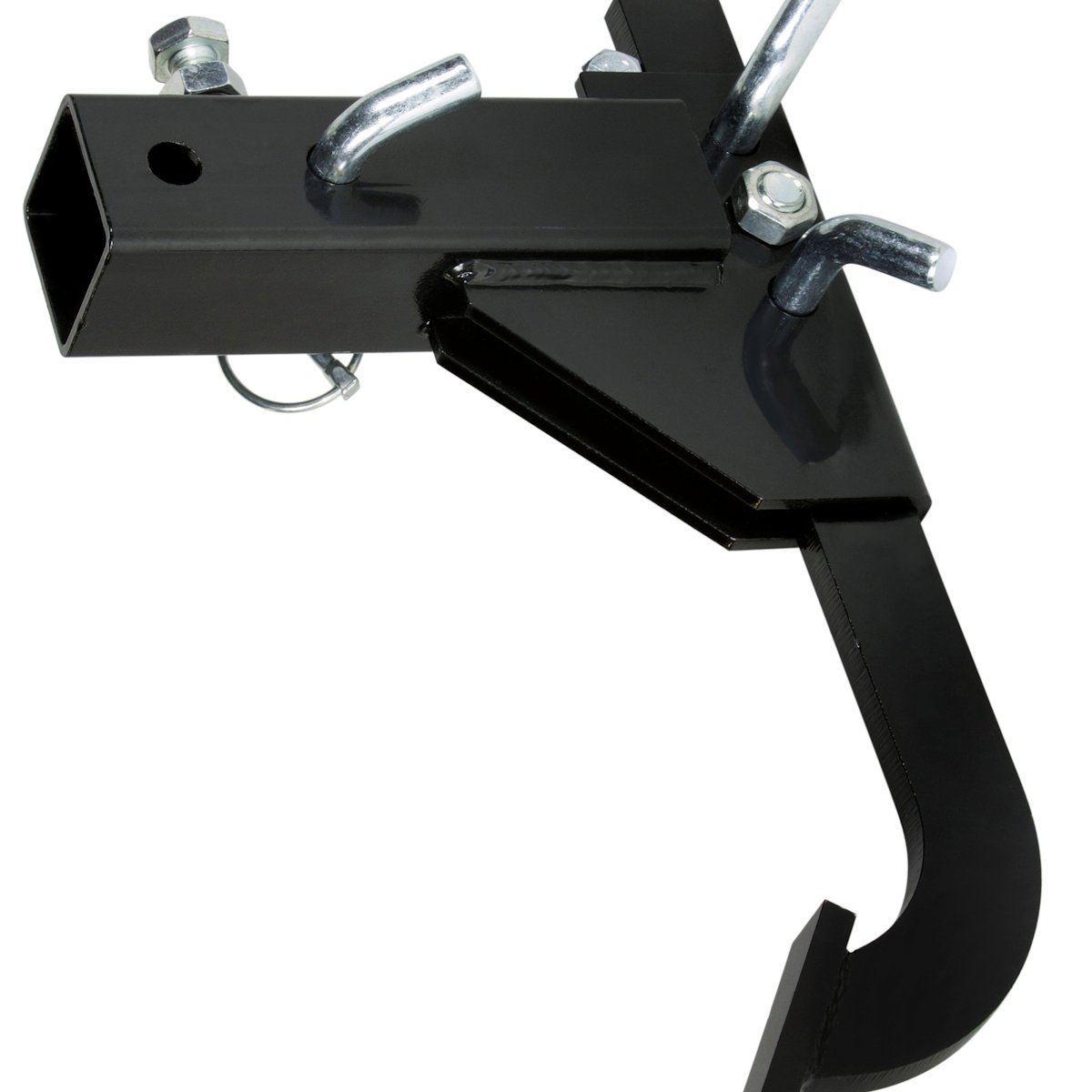

Middle Buster

• Rigid drop shank
• Dimensions: 16″ (W) x 9.75″ (H), Tine: 16″ (W) x 5.5″ (H), Tine Edge: 3″ (L) x 1″ (W) x 3/8″ (D)
• Weight: 40lbs

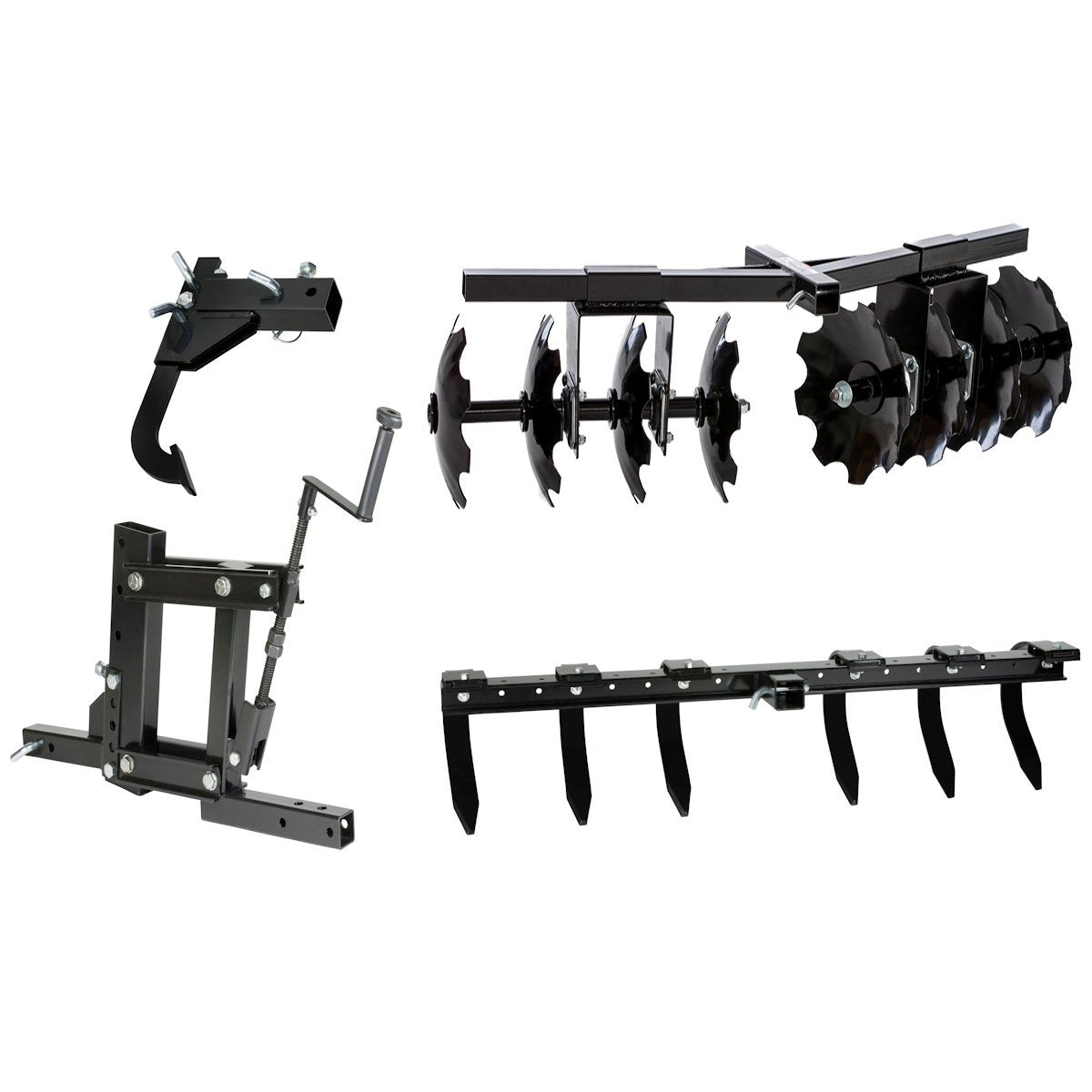

Kit Contents:

• 1-Point Lift System
• Cultivator
• Disc Plow / Harrow
• Middle Buster

Instructions:

• 1 Point Lift Instructions
• Disc Harrow Instructions
