Impact Implements ATV/UTV Utility Trailer 1500-lb Capacity – 15 cu ft.

Description

Impact Implements ATV/UTV Utility Trailer 1500-lb Capacity – 15 cu ft.

Designed with toughness in mind, the Impact Implements XT1500 Cargo Trailer features a heavy-duty steel frame and solid steel trailer bed. Haul sand, gravel and dirt without it sifting through the floor. Side rails and tailgate are removable for added versatility. Hauling 1,500lbs with a 15 cu. ft load capacity, this tilt bed, dump cart is perfect for farm, agricultural and horticultural projects, etc! The rigid hitch design features an up/down pivot allowing the trailer to roll easily over snow banks, ice, rocks and logs. Hitch pin (coupler attachment now available) attaches to any machine (ATV, UTV, SxS and snowmobile). Ideal for working around home, farm, ranch and hunt camp.

Uses:

• ATV
• UTV
• SxS
• Garden Tractors
• any machine with a pin paddle attachment already installed

Features:

• 15 cubic ft. hauling capacity; 1,500lb load capacity
• Max Speed 10 mph (not road compatible)
• Solid steel floor
• Removable tailgate and side rails are constructed of powder coated 16 gauge steel

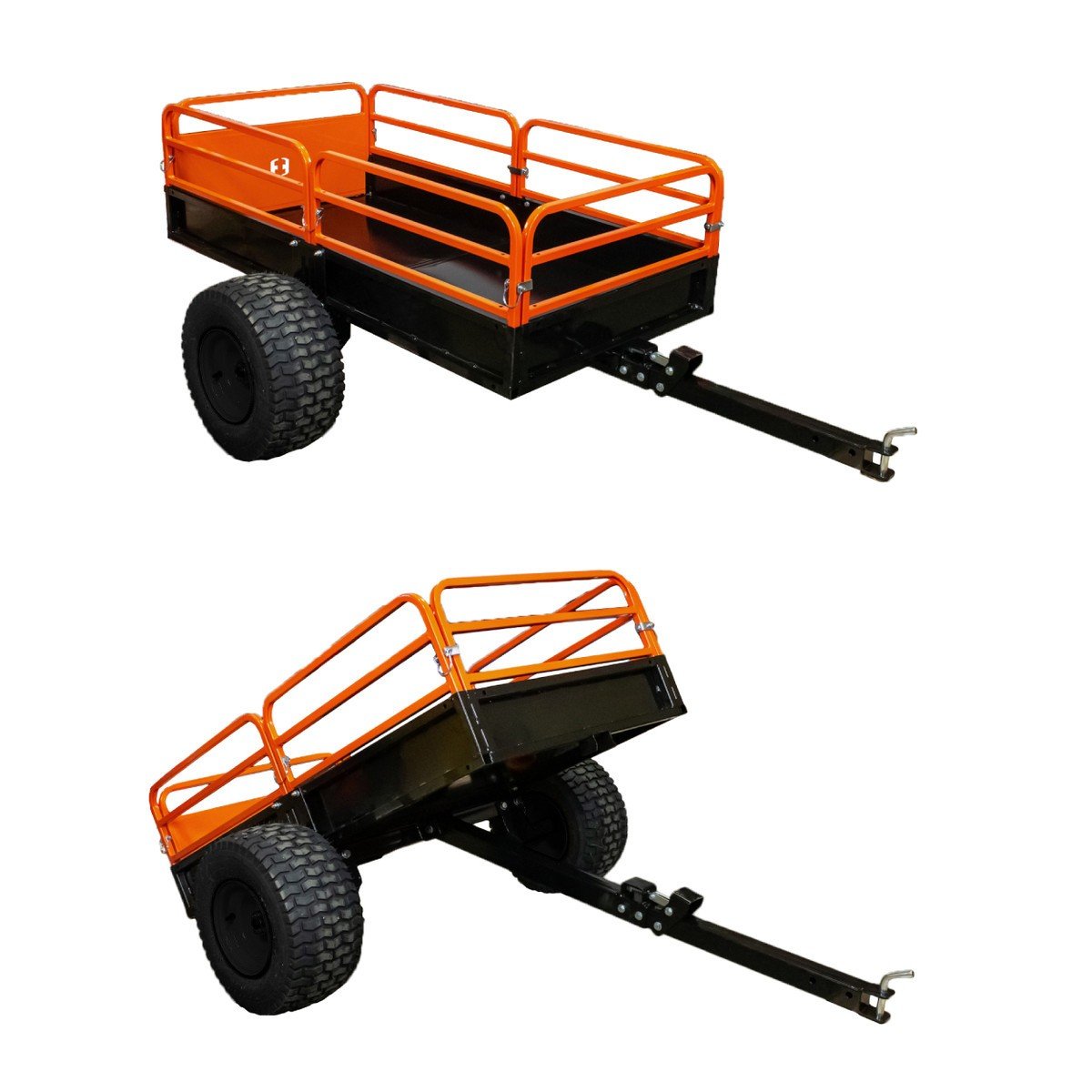

• Foot release dump latch and tilt trailer bed for easy loading and unloading
• Pass-through axle provides extra ground clearance
• Rugged wide-track tires for traveling over all types of terrain
• Sealed wheel bearings for easy maintenance and long life
• Pin style hitch (actual hitch on machine not included)
• Manufacturer Warranty

Specs:

• Assembled Dimensions (Tub, Hitch & Tires):  85” (L) x 48” (W) x 30” (H)
• Bed Dimensions: 54″ (L) x 28″ (W) x 15″ (H)
• Side Wall Height: 15″
• Hauling Capacity: 1,500lbs, 15 cu. ft.
• Weight – 150lbs
• Axle – 1″
• Ground Clearance – 12″
• Tires – 18” x 8”, 4-ply

Instructions:

• Installation Instructions
