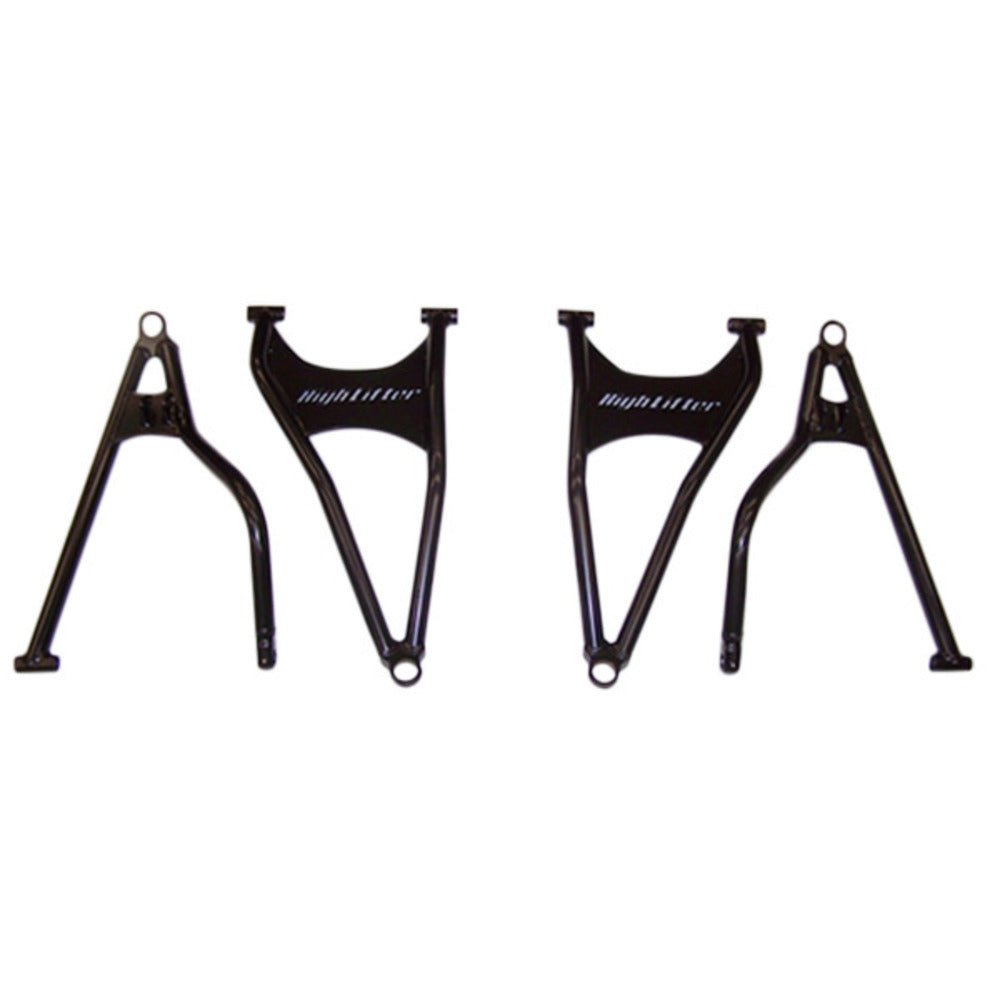

High Lifter Polaris RZR XP 1000 Front Forward Upper/Lower Control Arms

High Lifter Polaris RZR XP 1000 Front Forward Upper/Lower Control Arms



High Lifter's service team uses a hydraulic press to install the ball joint with the correct pressure and alignment, also making sure the clip is fully seated and secured. Purchasing control arms with the ball joints already installed prevents damage due to improper installation, which is not covered by High Lifter's Lifetime Warranty. The ball joints preinstalled in this kit are BJP-4.

Our arms maximize ground clearance by strategically arching the lower control arms while following the angle of the axle for maximum clearance, axle protection, and visual appeal. Don't be fooled with too much arch that puts your axles into greater risk of damage. Our precision manufacturing process ensures each control arm installs exactly like the factory arm. Depending on the model, most kits will have the High Lifter logo precision cut into the bracing.

Our arms maximize ground clearance by strategically arching the lower control arms while following the angle of the axle for maximum clearance, axle protection, and visual appeal. Don't be fooled with too much arch that puts your axles into greater risk of damage. Our precision manufacturing process ensures each control arm installs exactly like the factory arm. Depending on the model, most kits will have the High Lifter logo precision cut into the bracing.



Features:

• 25% larger than average stock arms - Crafted from 1 ¼" DOM steel
• Up to 2.5x the wall thickness of an average stock arms - .188" wall thickness
• Grease fittings included for most models
• Added ground clearance featuring bends that maximize clearance and axle protection
• Most stock powder coat colors available in stock
• Easy to install and maintain



.Dimensions:

• Weight: 40.98
• Length: 26
• Width: 15
• Height: 12



Note:

• In order to work on the RZR Turbo Models and FOX Edition, you must remove front factory sway bar for these applications. The front sway bar will not work in conjunction with High Lifter Max Clearance Kit when installing on Turbo and FOX Edition RZR Models.



Installation Instructions:

• Front Forward Upper/Lower Control Arms



Fitment:

• 2016 Polaris RZR XP 1000 EPS
• 2016 Polaris RZR XP 1000 High Lifter Edition
• 2016 Polaris RZR XP 4 1000 EPS
• 2016 Polaris RZR XP 4 1000 High Lifter Edition
• 2016 Polaris RZR XP 4 Turbo EPS
• 2016 Polaris RZR XP Turbo EPS
• 2015 Polaris RZR XP 1000 EPS
• 2015 Polaris RZR XP 1000 EPS Fox Edition
• 2015 Polaris RZR XP 1000 High Lifter Edition
• 2015 Polaris RZR XP 4 1000 EPS
• 2014 Polaris RZR XP 1000 EPS
• 2014 Polaris RZR XP 4 1000 EPS

Tire Fitment:

• Up to 35"
• Our tire fitment guide is a general fitment and is in no way guaranteed. Tires and lifts vary by manufacture and tire fitment can be affected by other modifications such as, but not limited to, wheel offset, actual tire diameter and actual tire width. Always verify your brand of tires, lift, and other modifications prior to making a buying decision.
