CageWRX Super Shorty Cage Kit – Polaris RZR Pro XP4

Description

CageWRX Super Shorty Cage Kit – Polaris RZR Pro XP4

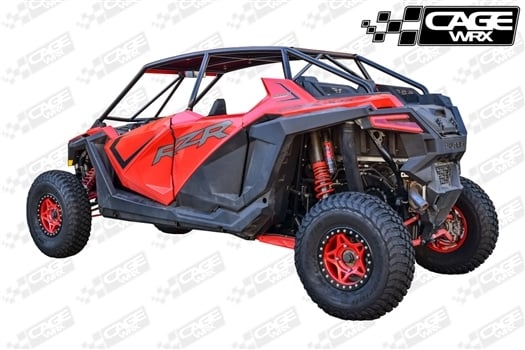

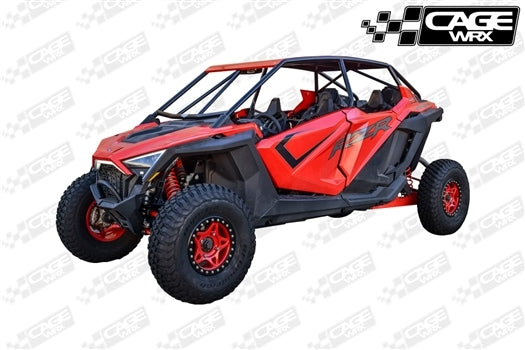

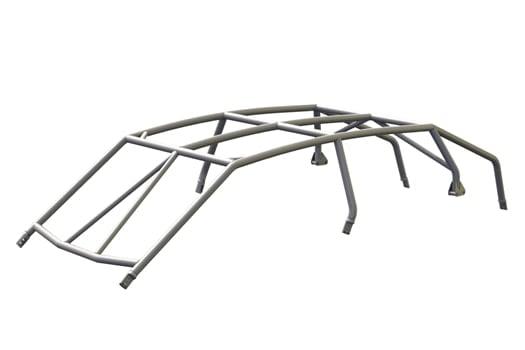

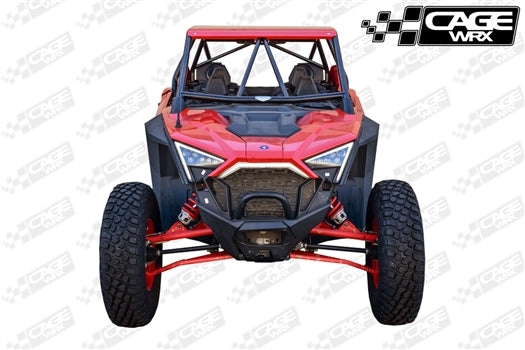

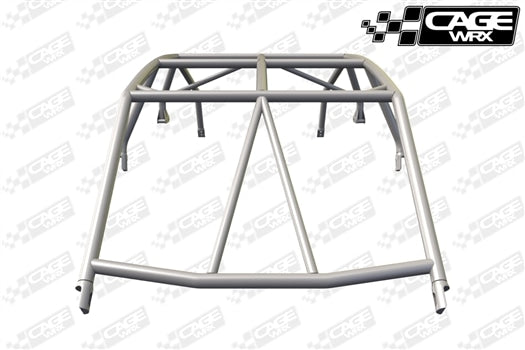

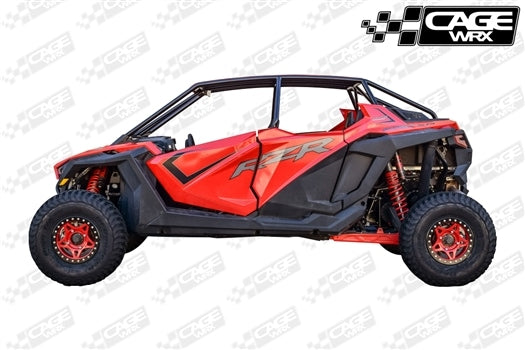

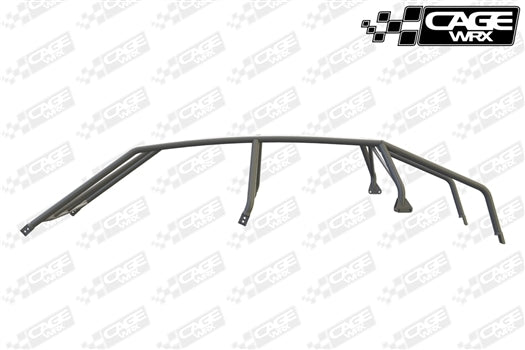

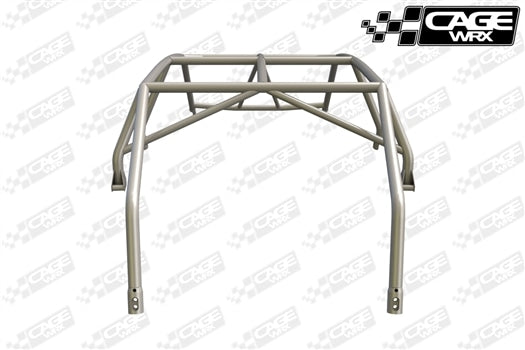

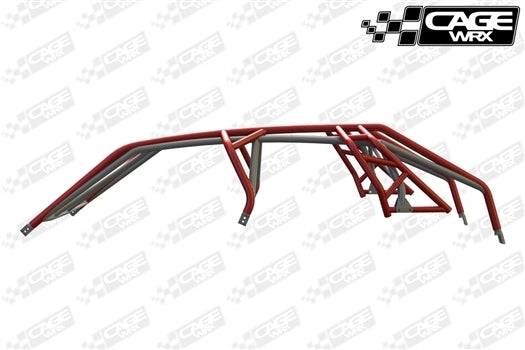

Ready-to-weld Roll Cage Kit for Polaris® RZR PRO XP 4 (2020+).

High-quality DOM steel was used throughout. Main tubes are 1.75″ diameter .095″ thick and cross tubes are 1.25″ diameter and .095″ thick. Our Super Shorty roll cages use all stock mounting locations. Trophy Truck-inspired design provides exceptional safety for driver and co-rider. All tubes are mandrel bent and laser cut for exact fit. No grinding or other work is required. The kit can be assembled and welded on the chassis without the need for a separate fixture.

Features:

• Highest grade 1020 DOM steel
• Main tubes 1.75″ diameter
• All tubes .095″ wall thickness
• (8) CNC Machined chassis clamps included
• Highly triangulated roll cage for added strength
• Slight radius roof design used
• Tubes are laser cut and labeled
• No welding fixture required
• No grinding or other fab work required
• Competent welder and welding machine, tape measure, and 2 ratchet straps are all that is required
• Kit can be TIG or MIG welded
• ROOF NOT INCLUDED IN KIT.

What’s In The Box?

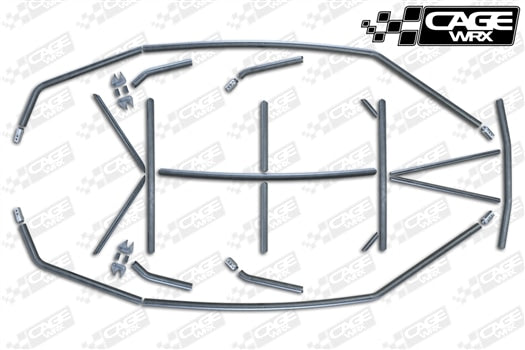

• 20 Laser Notched Tubes with tab and slot design for easy positioning of tubes
• 4 Billet Tube Ends (chassis clamps)
• 4 Chassis Mount Plates
• 4 Chassis Mount Gussets
• 2 Whip mounts
