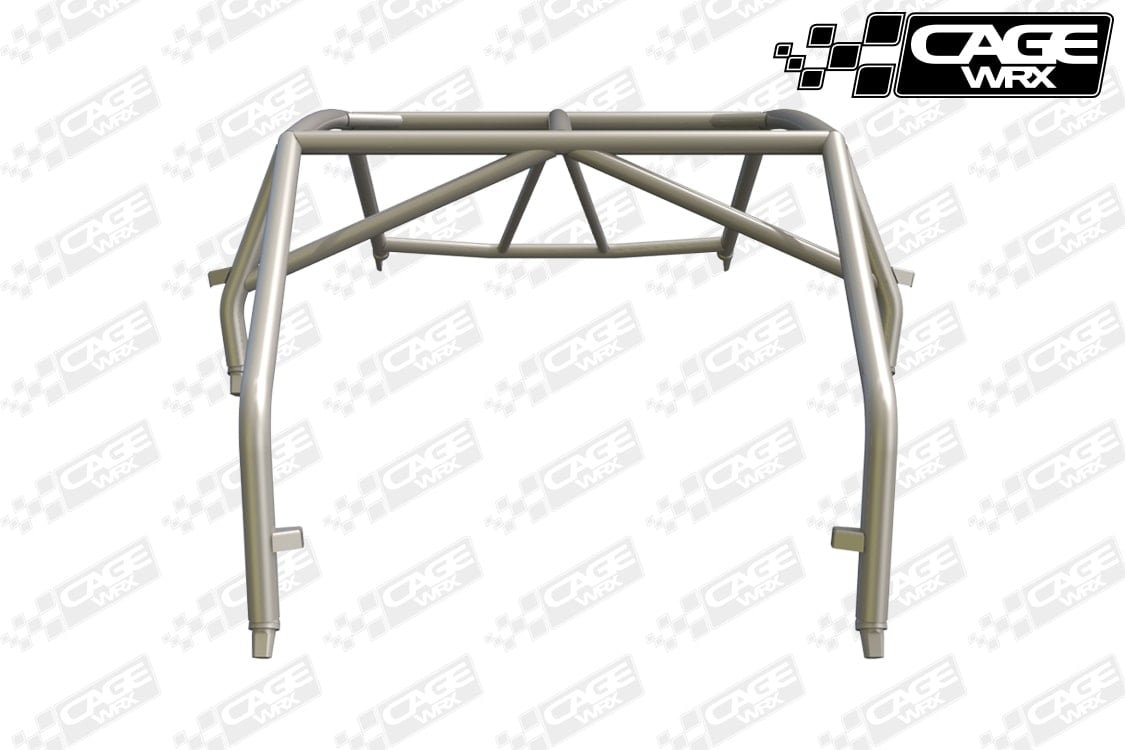

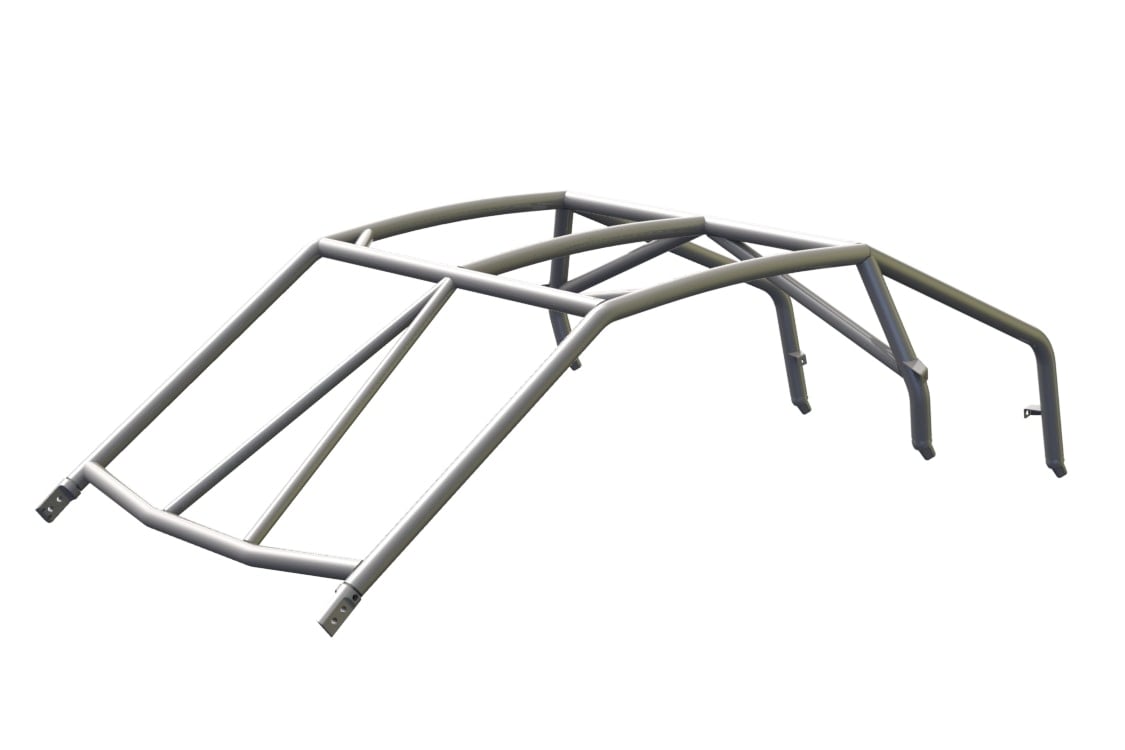

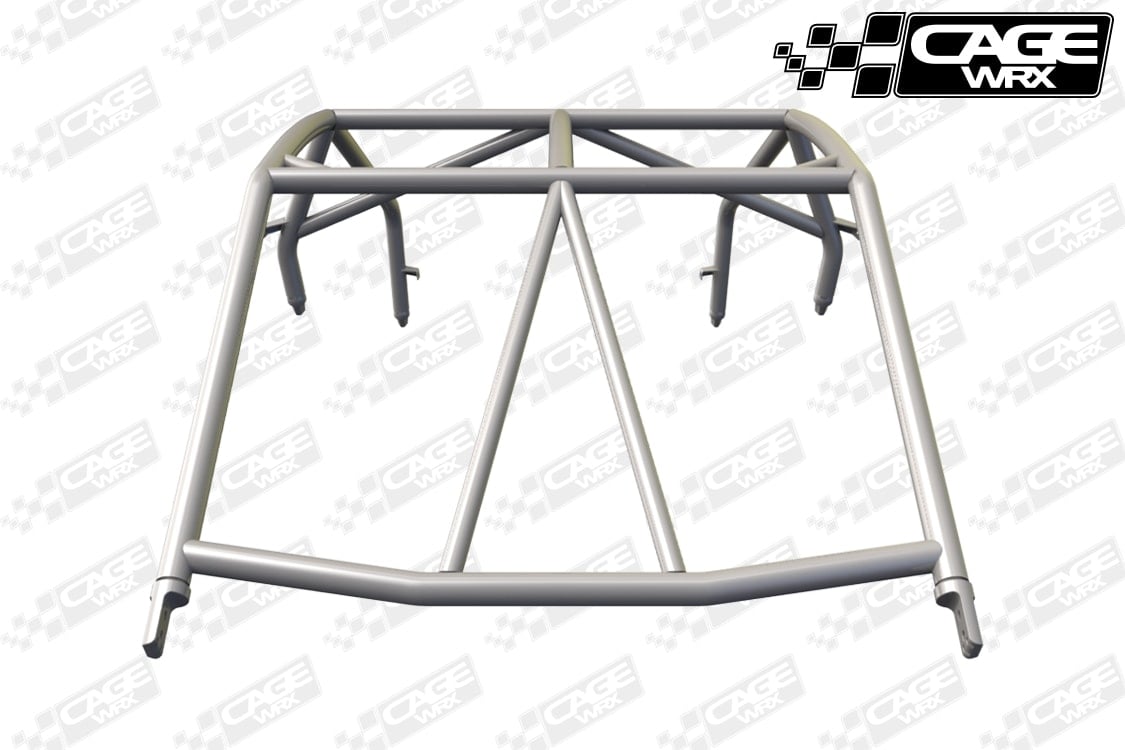

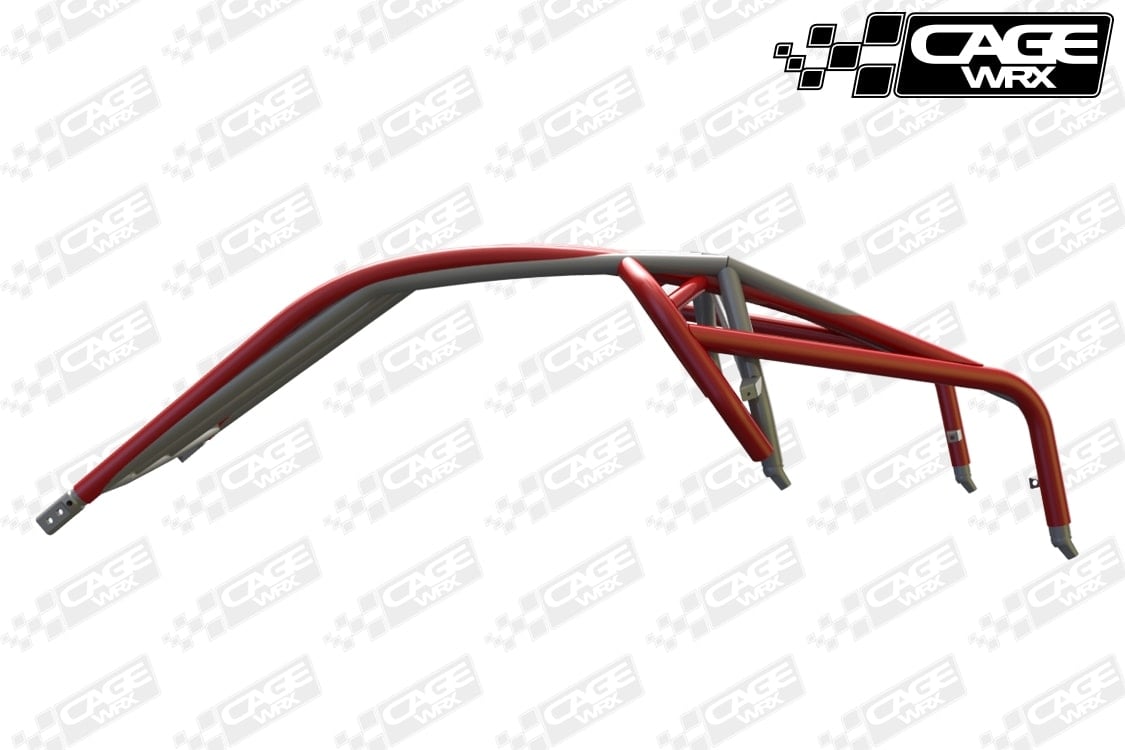

CageWRX Super Shorty Cage Kit – Polaris RZR Pro R
Ready-to-weld Roll Cage Kit for Polaris® RZR PRO R (2022+).
High quality DOM steel used throughout. Main tubes (rolled roof tube and B-Pillar) are 1.75″ diameter .120″ wall thickness, intrusion tubes are 1.25″ diameter and .095″ wall thickness, all remaining tubes are 1.75″ diameter and .095″ wall thickness. Our Super Shorty roll cages use all stock mounting locations. Trophy Truck inspired design provides exceptional safety for driver and co-rider. This is truly the best roll cage kit on the market. All tubes are mandrel bent and laser cut for exact fit. No grinding or other work required. Kit can be assembled and welded on chassis without the need for a separate fixture.

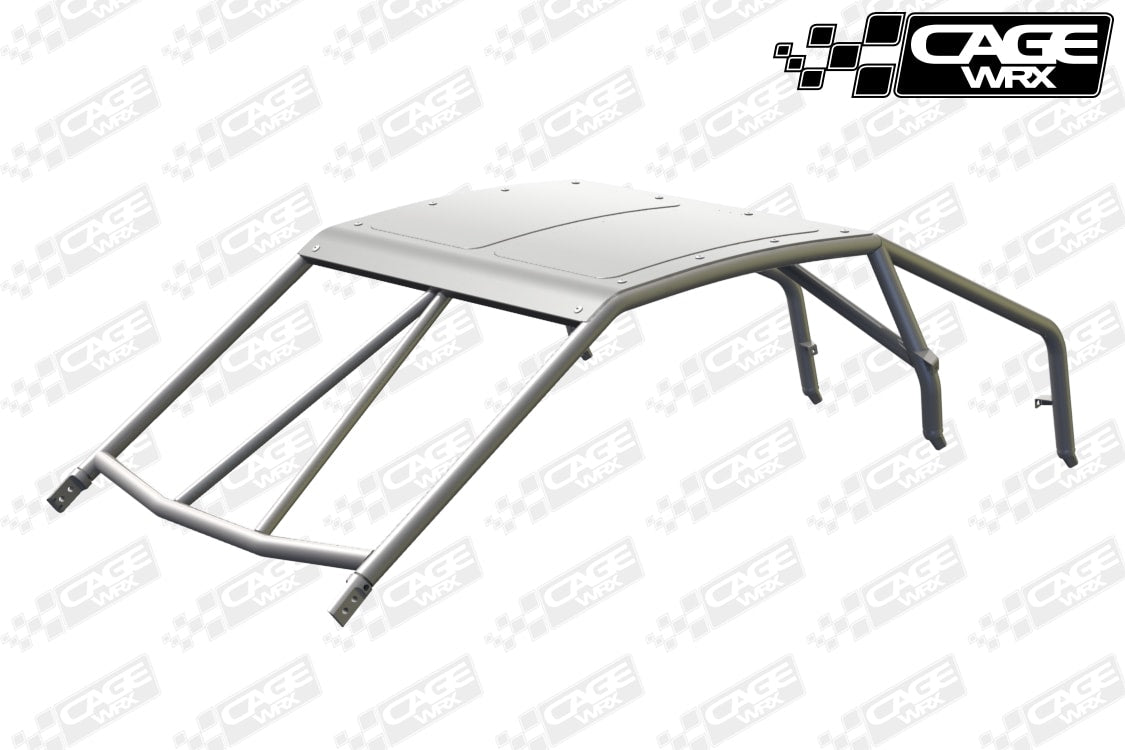

*ROOF NOT INCLUDED IN KIT*
Click HERE to download a PDF file of the cage
Click HERE to open the 3D E-Drawings for more help with your build!
- Highest grade 1020 DOM steel
- Main tubes 1.75″ diameter .120 wall thickness
- Rear Intrusion tubes 1.5″ diameter .095″ wall thickness
- Front Intrusion tubes 1.25″ diameter .095″ wall thickness
- All other tubes 1.75″ diameter .095″ wall thickness
- (6) CNC Machined chassis clamps included
- Highly triangulated roll cage for added strength
- Slight radius roof design used
- Tubes are laser cut and labeled
- No welding fixture required
- No grinding or other fab work required
- Competent welder and welding machine, tape measure and ratchet straps are all that is required
- Kit can be TIG or MIG welded
What’s In The Box?
- 16 Laser Notched Tubes with tab and slot design for easy positioning of tubes
- 6 Billet Tube Ends (chassis clamps)
- 2 Weld On Body Mounting Brackets
- 2 Weld On Bed Mounting Brackets
- 2 Weld On Factory location Whip Mounts
- 2 Weld On Top location Whip Mounts (Optional)
